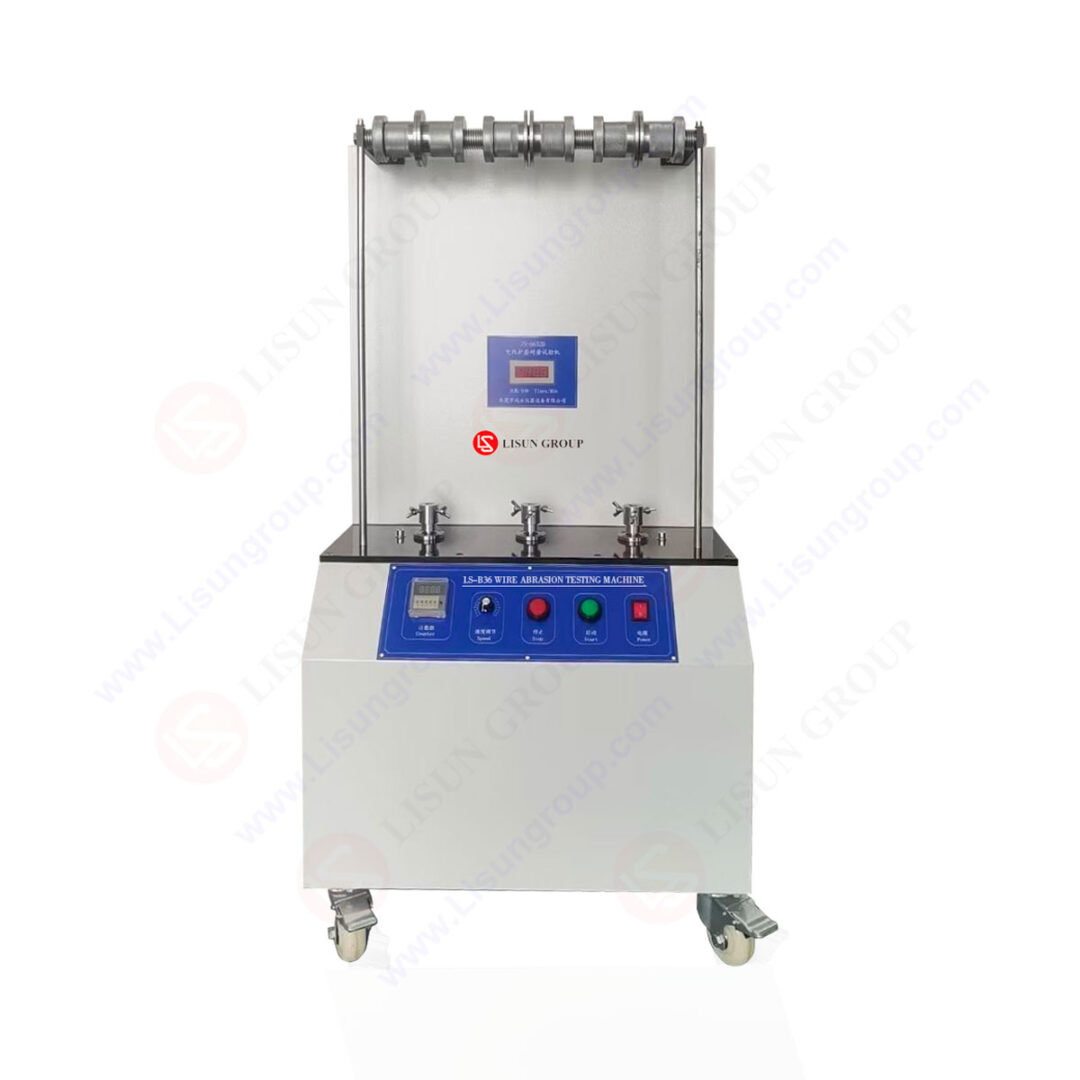

IEC 60227-1 Clause 4.2.3 IEC 60227-2 Clause 1.8 Wire Abrasion Testing Machine
IEC 60227-1 Clause 4.2.3 IEC 60227-2 Clause 1.8 Wire Abrasion Testing Machine

Leave a Message

=

IEC 60227-1 Clause 4.2.3 IEC 60227-2 Clause 1.8 Wire Abrasion Testing Machine

Product No: LS-B36

  • Specifications
  • Applications
  • Standards

  • Wire Abrasion Testing Machine is suitable for testing the abrasion resistance of finished flexible cables. By simulating the friction conditions in actual use, it conducts targeted friction tests on the cable surface to verify its ability to withstand friction, ensuring that the cable can withstand the corresponding friction loss and maintain a stable service condition during subsequent use.

    Standards:

    Standards Standards Name
    IEC 60227-1:2024  Flexible cables and cords – Part 1: General requirements
    GB/T 5023.1-2024  额定电压 450/750V 及以下聚氯乙烯绝缘电缆 第 1 部分：一般要求

    Specifications:

    Fixed Shaft Diameter 40+0.3mm
    Test Rate Single direction 40 +1 times/min
    Test Stroke Up and down movement within a distance of 0.1 m
    Weights 500 +5 g (3 pieces)
    Test Count 0 to 999,999 times, presettable
    Power Supply AC220V+ 10%/50-60Hz
    Working Temperature 0-40°C
    Working Humidity 30%-90%
    Equipment Dimensions 800x600x1000mm

    IEC 60227-1 Clause 4.2.3

    IEC 60227-2 Clause 1.8
