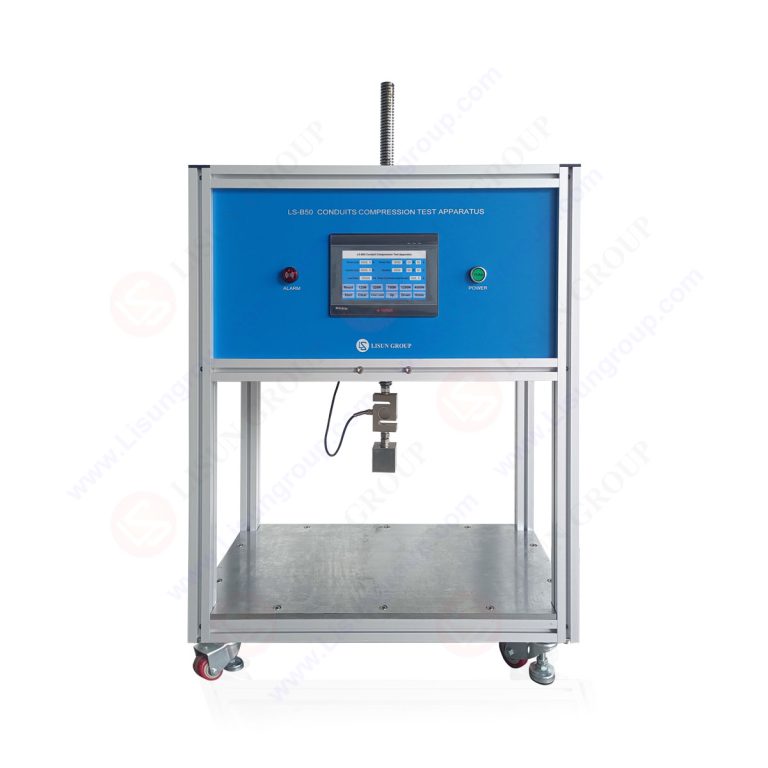

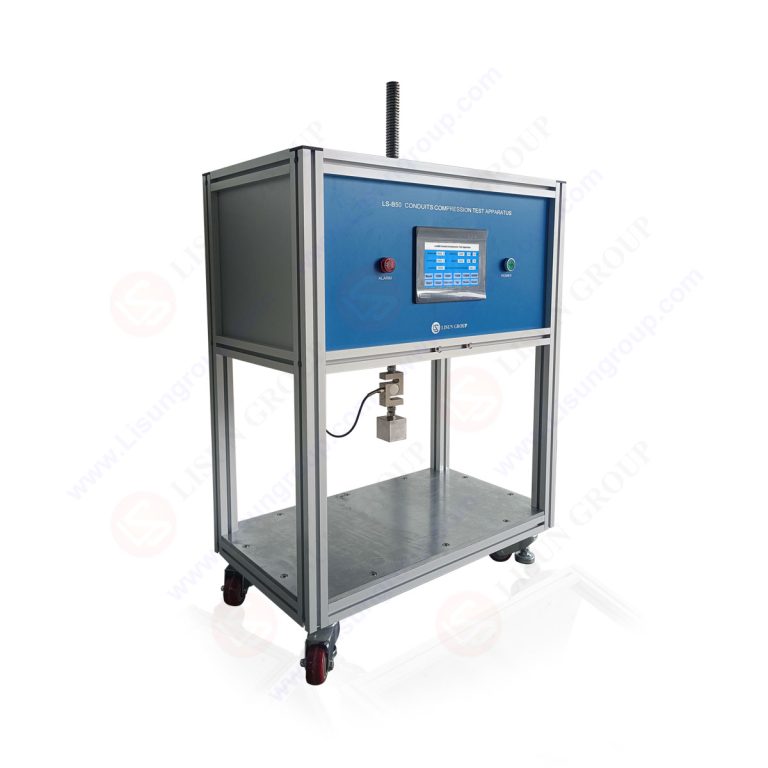

Conduits Compression Test Apparatus According to IEC 61386-1: 2017 Clause 10.2 and Figure 1

Product No: LS-B50

  • Specifications

  • Conduits Compression Test Apparatus is suitable for pressure testing of various plastic pipes and corrugated plastic pipes. By placing a cubic steel block on the sample and applying a slowly increasing force using levers and weights, a specialized measuring instrument captures the change in outer diameter at the flattened part of the sample, thereby evaluating the sample’s mechanical properties. The equipment provides stable testing and accurate measurement results, offering reliable support for the quality inspection of related materials.

    Standards:

    Standards Standards Names
    IEC 61386-1:2017 Rigid conduit systems for electrical installation – Part 1: General requirements
    GB/T 20041.1-2015 电气安装用导管系统 第 1 部分：通用要求
    GB/T 14823.2-2017 电气安装用导管 第 2 部分：刚性绝缘材料平壁导管
    JG 3050-1998 建筑用绝缘电工套管及配件
    ZBG 33008-1990 聚氯乙烯塑料波纹电线管

    Specification:
    •  Maximum pressure: 5000N
    •  Pressure accuracy: ±1%
    •  Pressure head specification: 50*50mm
    •  Pipe diameter change measurement range: 0-12mm, measurement accuracy 0.01mm
    •  Lifting plate size: 300*150mm
    •  Lifting range: 200mm
    •  Overall dimensions: 310*210*700mm
    •  Weight: 55kg

    Standard:
    IEC 61386-1 (GB/T 20041.1)  “Conduit systems for cable management – Part 1: General requirements” Clause 10.2 and Figure 1
    IEC 61386-21 (IEC 60614-2-2, IEC 614-2-2) “Conduit systems for cable management – Part 21: Particular requirements – Rigid conduit systems”

    IEC 61386-1: 2017 Clause 10.2

    IEC 61386-1: 2017 Figure 1
