IEC 60884-1 Clause 16.2 Figure 18 Test Wall for Concealed Socket IP Waterproof

Product No: LS-B05

  • Specifications
  • Standards

  • The LS-B05 Concealed Socket IP Testing Wall through its reasonable structural design and material combination, simulates the humid conditions that electrical accessories may encounter in actual use environments. It provides a test platform that fits the actual use scenario for testing the waterproof protection performance of related products, ensuring the standardization of the testing process and the reliability of the test results, and helping related products meet the corresponding protection performance requirements.

    Standards:

    Standards Standards Name
    IEC 60884-1:2022  Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
    GB/T 2099.1-2021 家用和类似用途插头插座 第 1 部分：通用要求

    Specification:

    Parameter

    Specification

    Housing Material

    SUS304

    Mounting Box

    86 mounting box

    Dimensions

    Minimum: 400mm×400mm

    Composition

    Brick, cement mortar, stainless steel housing, electrical mounting box

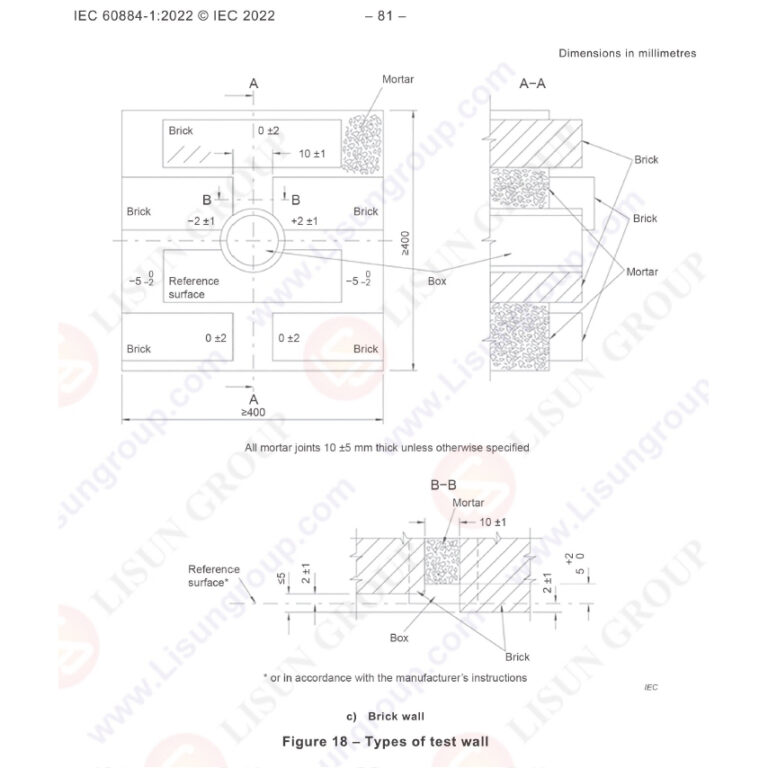

    IEC 60884 1 Figure 18
