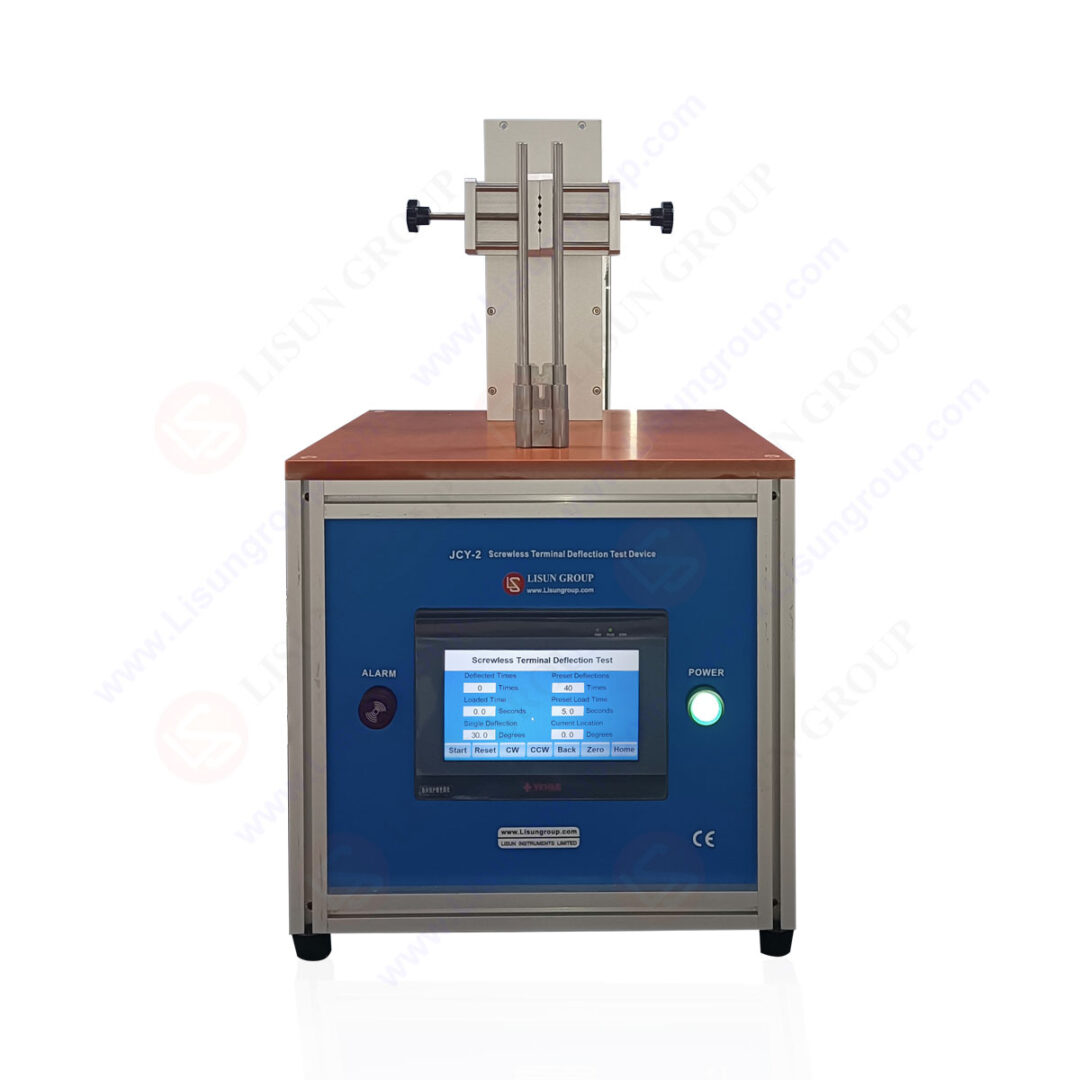

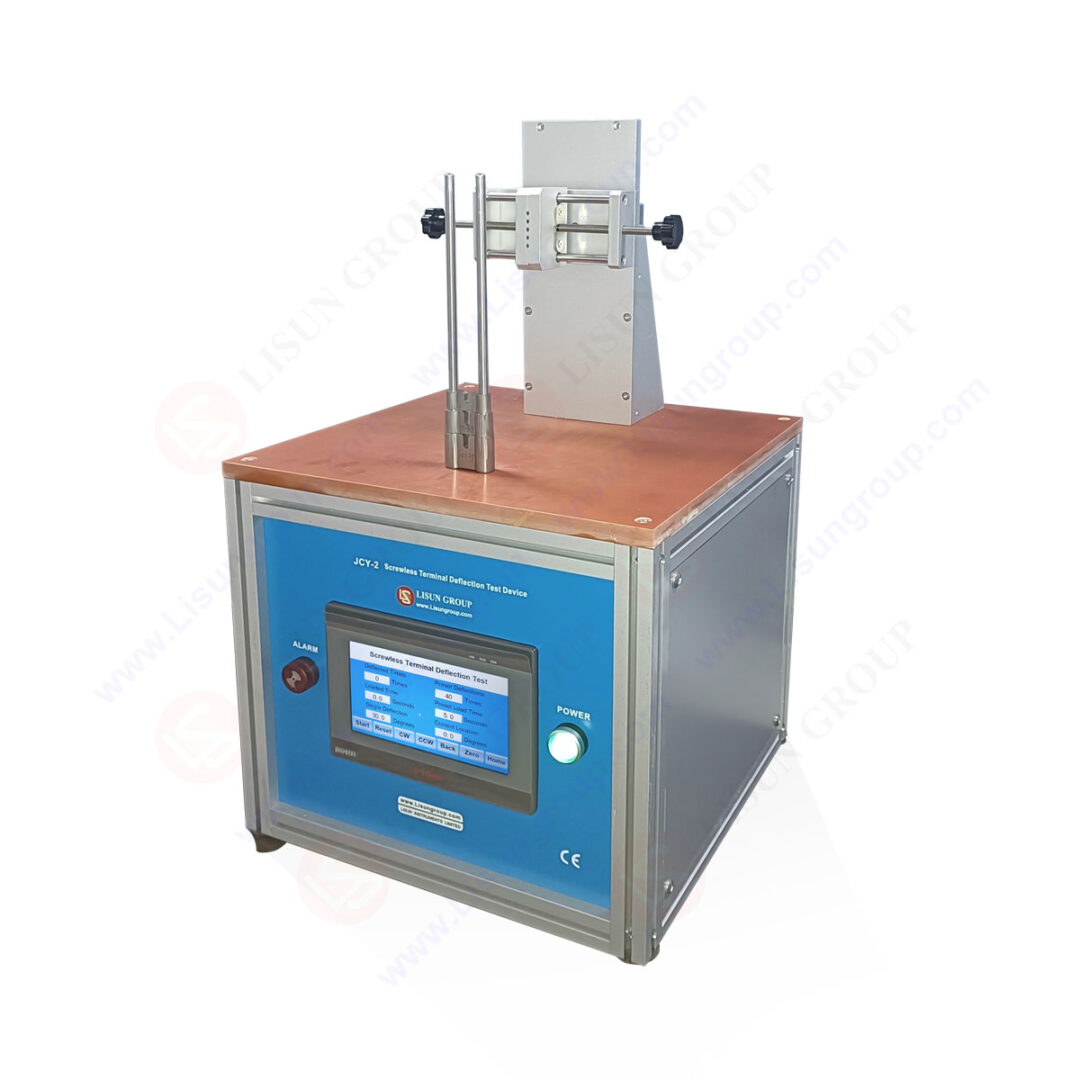

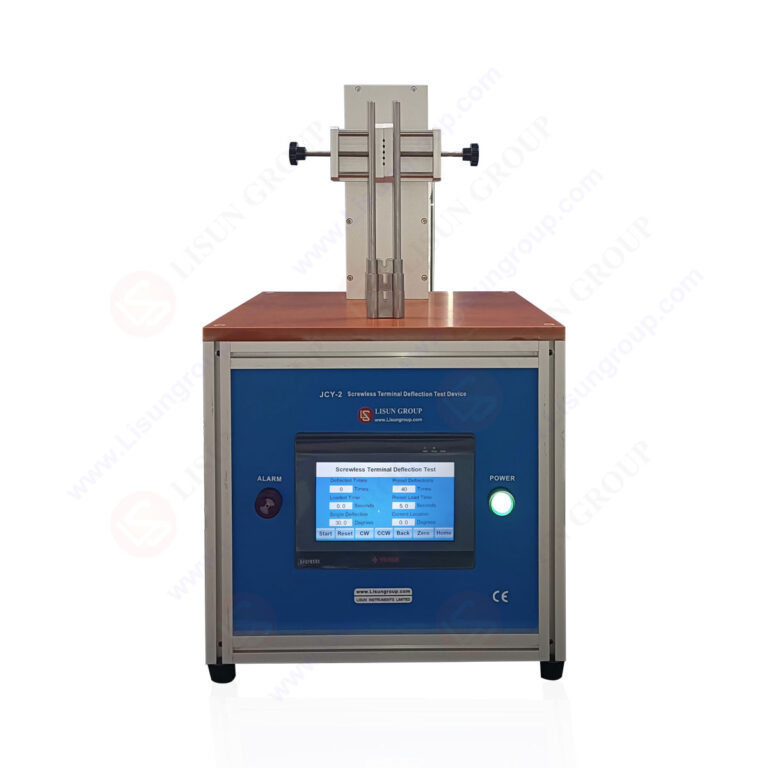

IEC 60884.1 IEC 60669-1 Clause 12.3.12 Screwless Terminal Deflection/Bending Test Device

Product No: JCY-2

Specifications
Videos
Applications
Standards

The JCY-2 Screwless Terminal Deflection/Bending Test Device is a specialized device designed for testing the connection performance of threadless terminals. The device simulates the bending stress that a terminal might experience during actual wiring by applying a bending force in a specific direction after connecting the wire. Simultaneously, it measures the voltage drop during the bending process to assess the terminal’s clamping ability and contact stability, verifying that the terminal maintains a reliable connection even when the bending force is transmitted to the clamping components.

Standards:

Standards	Standards Name
IEC 60884-1:2022	Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
IEC 60669-1:2017	Switches for household and similar fixed electrical installations – Part 1: General requirements
GB/T 2099.1-2021	家用和类似用途插头插座第 1 部分：通用要求
GB/T 16915.1-2024	家用和类似用途固定式电气装置的开关第 1 部分：通用要求

Specification:
• Operating Mode: Automatic
• Bending Angle: 0-360°, Graduation: 10°
• Bending Direction: Towards any one of the 12 directions, each differing by 30°±3°
• Weights: 0.25 N, 0.5 N, 1.0 N
• Force Direction: Perpendicular to the direction of the unbent conductor
• Single workstation

Note: The JCY-2 Screwless Terminals Bending Test Device is typically used in conjunction with the JCY-1 Screwless Terminals Bending Test Device.

IEC 60884.1 Figure14

IEC 60998-2-2 Figure 103
