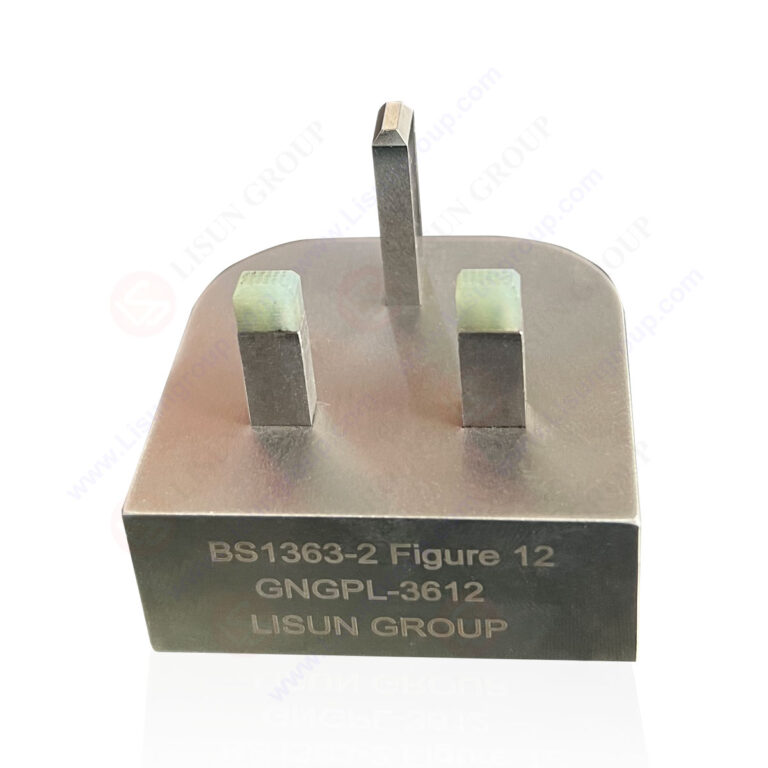

Contact Test Gauge According to BS 1363-2 Figure 12

Product No: GNGPL-3612

  • Specifications
  • Tech Articles

  • Application:
    This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to BS 1363 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

    Feature:
    Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements; Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

    Standard:
    BS 1363-2 “13 A plugs, socket-outlets, adaptors and connection units – 13 A switched and unswitched socket-outlets. Specification” Figure 12

    Contact Test Gauge According to BS 1363-2 Figure 12

    Contact Test Gauge According to BS 1363-2 Figure 12
