Integrated Function Tester for Inductance Ballast
Integrated Function Tester for Inductance Ballast

Leave a Message

=

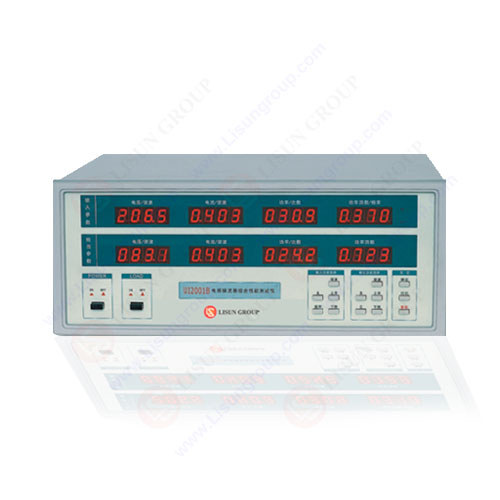

Integrated Function Tester for Inductance Ballast

Product No: UI2001B

  • Specifications
  • Tech Articles

  • Inductance Ballast Integrated Function Tester Specifications:

    • Measure input parameters: Vrms, lrms, W, PF, Hz, current crest factor, total harmonic and 0~50th harmonic components. V range: 10.0~300.0V, A range: 0.010~2.000A, F range: 45~65Hz
    • Measure output parameters: Vrms, lrms, W, PF, Hz, current crest factor, total harmonic and 0~50th harmonic components Lamp voltage range: 10.0~450.0V, Lamp current range: 0.010~2.000A
    • Accuracy: ± (0.4% reading+0.1% range+1 digit)
    • Can test every kind of curve, print both data & curve
    • Communication interface available for PC, running under Windows98/2000/XP/Vista

    Tags： ,

  • The performance test of Electrical Ballast

    18 Mar, 2016

    Electrical Ballast is one kind of the ballasts; it is the electronic equipment which adopts...
